Brand Name : FANBAO
Model Number : NMRV Worm Gear Speed Reducer
Certification : CE
Place of Origin : china
MOQ : 1
Price : negotiation
Payment Terms : L/C, T/T
Supply Ability : 150sets per month
Delivery Time : 5-8 work days
Packaging Details : standard export wooden case
Gearing Arrangement : Worm
Output Torque : 2.6-1195N.M
Rated Power : 0.06-15KW
output Speed : 14-280rpm
Voltage : 220V-380v

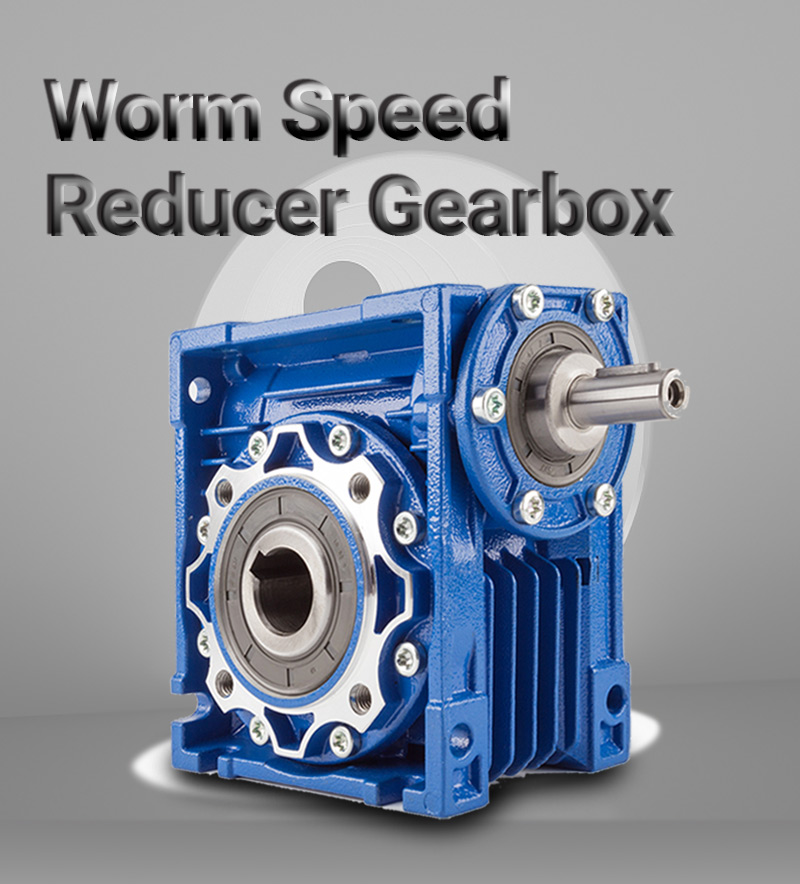

NMRV075 Input Hole19mm 7.5:1-100: 1 Gear Ratio Worm Gear Reducer For 110mm Servo Motor Or 110mm BLDC MOTOR
Description
The NMRV reducer is a part of the warm gear speed reducer family and represents a new category of reducer, alternatively recognized as the RV reducer. The term "NMRV" generally denotes the aluminum shell reducer and has become the standard name for this type of reducer worldwide.
Key components of the NMRV reducer include the oil seal, oil inlet, worm gear box, ball bearing, output shaft, worm gear, worm, motor coupling plate (flange), output shaft cap, hexagonal socket head screw, double round key, gasket, among others. Within the NMRV series, such as the BHADE reducers, variations exist, with some featuring single flange inputs and others equipped with flange or double shaft outputs.
Technical Parameters:
Material for worm reducer:
housing: aluminum alloy die cast
Worm gear: Nodular cast iron and bronze
Feature of worm reducer gearbox:
1) High quality aluminum alloy die cast gearbox
2) High accuracy worm gear and worm shaft
3) Less noise and lower temperature increase
4) Easy mounting anc connection, high efficiency
Specification:
Model: | NMRV025,030,040,050,063,075,090,110,130,150 |
Ratio: | 1:5,7.5,10,15,20,25,30,40,50,60,80,100 |
Color: | Blue,Silver Or On Customer Request |
Noise: | low noise(<50DB) |
Advantage | Eficient and safe operating |
Material: | Housing Die-Cast Aluminum Alloy |
Worm Gear-Bronze 9-4# | |
Worm-20CrMnTi with carburizing and quenching,surface harness is 56- 62HRC | |
Shaf-chromium steel-45# | |
Packing | Carton and Wooden Case |
Bearing | C&U Bearing |
Seal: | NAK SKF |
Certificate: | IS09001,CE,3C,OEM |
Warranty | 12 months |
Input Power. | 0.06kw,0.09kw,0.12kw,0.18kw,0.25kw,0.37kw,0.55kw,0.75kw,1.1kw, 1.5kw,2.2kw,3kw,4kw,5.5kw,7.5kw,11kw,15kw |
IEC Flange: | 56B5,56B14,63B5,63B14,71B5,71B14,80B5,80B14,90B5,90B14, 100B5,100B14,112B5,112B14,132B5,160B5 |
Lubricant | Synthetic &Mineral |
![]() |

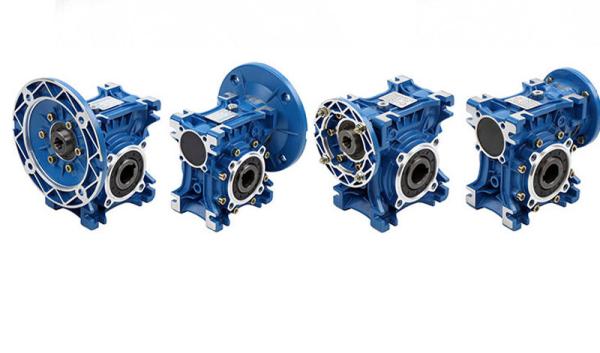

NMRV075 Double Worm Gear Reducer 50:1 Ratio For 110mm BLDC Motor Images |
